Automatic Horizontal Shipping CLOTHING Case Packer For Cartons Case Packing&Sealing Machine Case Erector

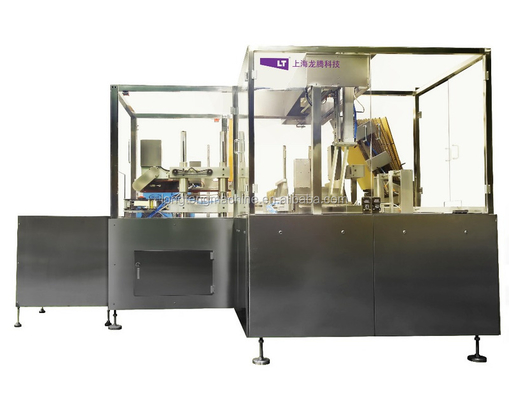

BMP600 Automatic Horizontal  Case Packing Machine
1. Machine Packing Type:60/70/90 bottle cartons packed in one Shipper Carton,or according to customer request.

2. Machine Output:1-5cartons/min.

Main device is included:Bottle carton collecting device,case automatic opening device,Bottle cartons robot arm infeeding device,paper sheet robot arm inserting device,SIEMENS control system.

3. Case transferring plate height:550-750mm(According to request)

4. Standard :Normally use Acrylic glass for safety cover,meet CE standard.

 Mechanical parts adopts S.S,Steel with chrome plating,and strong corrossion resistance material with good surface spraying

 Products infeeding&collecting conveyer belt is driven by servo motor,equipped with rooftop chain to load products,equidistance transfer the products.

 Carton staging area can settle 80-120pcs paper pat,can be implemented at any time.

 Auto forming device equipped with servo pneumatic parts to absorb the case and open it,with bottom flapped.

 Case rotating device:adopts pneumatic parts to performance all the actions,using vacuum suction cup and rodless pneumatic parts to transfer and rotate the case into vertical status.

 Mechanical arm infeeding device:using SIEMENS servo motor drives mechanical arm to grab the products and transfer into case,adopt vacuum suction cup to suction products,with quick speed and high precise position.

 Case location adopts pneumatic parts

 main electric cabinet is on machine

 no case&adhesive tape,machine alarm

Technical Paramter：

Electrical system:

Voltage：3*400V，50Hz，seperate grounding conductor

Rated current：9A

Fuse Break：20A

Air compressure：6 working pressure

Compressed air consumption：27NL/circle

compressed air should be in accordance with DIN ISO8573-1：

Characteristic:

Max Speed：6 cases/min.

Case Size Range:

Folded case：Min25*12*60mm（a*b*h）

Max:100*100*250mm（a*b*h）

Case：Min.160*160*160mm（A*B*H）

Max:600*500*400mm（A*B*H）（A+B≤1000mm）

Carton type：corrugrated paper；A，B，C——corrugrated

Case sealing：clean tape，50mm width.

* Inquiry and technical consulting support.

* Professional project proposal,machine recommendation and price offer according to customer package requirements.

* View our Factory and machine technical communication.

* Provide Training service for how to operate the machine, how to maintenance the machine& machine troubleshooting.

* Engineers available to service machinery SAT and commissioning overseas.

* Supply Spare&wear parts at a discounted price in machine life time.

* Quick response to machine troubleshooting.
