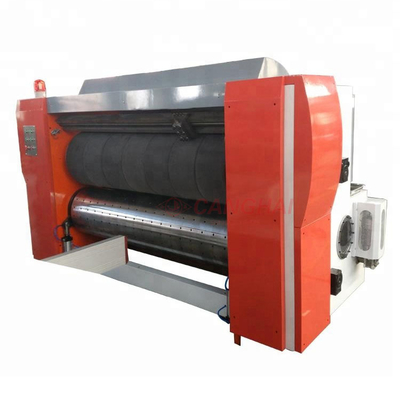

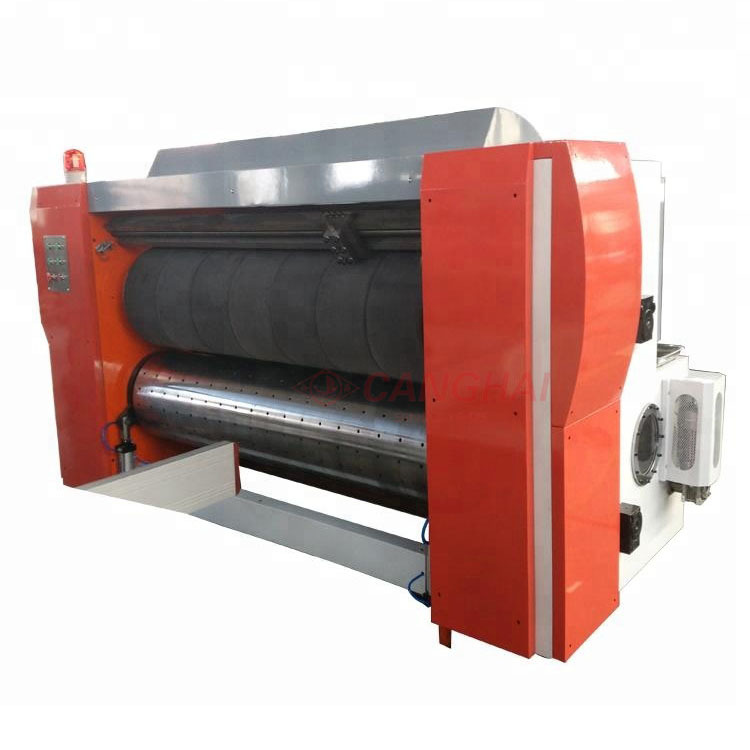

Carton Semi Rotary Carton Making Die Cutting Machine

die cutter machine according to the different forms of embossing, mainly divided into three types of  rotary die cut machine, flat bed die cut machine, flat platen die cut machine.

Rotary die cutting machine carton box is characterized by line contact, die cutting pressure, high production efficiency, and offset printing machine, flexo printing machine, gravure printing machine and other printing equipment can be connected to the line die cutting, so the scope of application is relatively wide.

Complete machine specification

Complete machine feature for Sales promotion rotary die cutting machine for corrugated box

1)The die cutter machine designed and produced based on high quality, high speed, high efficiency, reliability and safety, with quick changing order and easy operation

2) Adapting imported PLC with touch screen control. It can save order, and accelerate speed of changing order.

3)rotary die cutting machine for corrugated box adopt high quality material and assembly part, all cylinders and rollers are chrome plated for ideal hardness

4)Transmission gears from precision grinded alloy steel and with spraying type circulating lubrication system.

5)Use expansion sets tight link to reduce abrasion of the shaft, keep high precision of machine for long year.

6)Each unit of rotary die cutter machine equipped with emergency stop switch to ensure safety operation

7)Self-locking clearance adjustment device, easy to operation

8)Electric element, bearing, and pneumatic element all use international famous brand

cardboard die cutting machine

rotary die cutting machine for corrugated box compare with general type

Front and side drawing for whole set carton box die cutting machine

 From right to left is

1. front edge feeding machine

2. printing machine

3. Slotting machine

4. Die cutting machine

5. Gantry stacker

6. Lifting fold gluer machine

7. Paperboard Feeding machine

8. Box strapping machine

Finished Carton box made by rotary die cutting machine for corrugated box

1)Inside packaging could be iron frame:it is more firm to avoid shake and damage.

2)Outside packaging could be wooden case: the wooden case is of soft texture could reduce damage from impact

3)There is waterproof wrapped on the product surface before shipment

4)We also accept custom according to your requirement
